Formulación de alcanos y radicales ramificados

, por F_y_Q

Formula los siguientes compuestos y radicales orgánicos:

a) 2,3,4-trimetilhexano

b) 3-etil-2-metilhexano

c) 1,1-dimetilpropilo

d) 4,4,5,5-tetrametilheptilo

e) 3,3,6-trietil-6-metiloctano

f) 4-etil-3-metildecano

g) 4-etil-2,5,7-trimetil-5-propilnonano


SOLUCIÓN:

a) \chemfig{H_3C-CH(-[2]CH_3)-CH(-[2]CH_3)-CH(-[2]CH_3)-CH_2-CH_3}

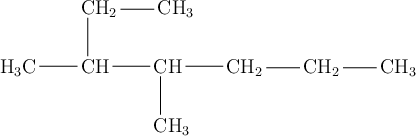

b) \chemfig{H_3C-CH(-[2]CH_2-CH_3)-CH(-[6]CH_3)-CH_2-CH_2-CH_3}

c) \chemfig{H_3C-CH_2-C(-[2]CH_3)(-[6]CH_3)-}

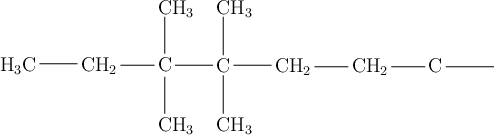

d) \chemfig{H_3C-CH_2-C(-[2]CH_3)(-[6]CH_3)-C(-[2]CH_3)(-[6]CH_3)-CH_2-CH_2-C-}

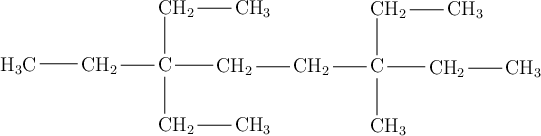

e) \chemfig{H_3C-CH_2-C(-[2]CH_2-CH_3)(-[6]CH_2-CH_3)-CH_2-CH_2-C(-[2]CH_2-CH_3)(-[6]CH_3)-CH_2-CH_3}

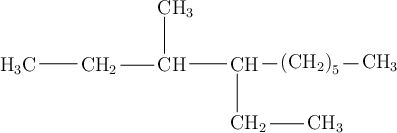

f) \chemfig{H_3C-CH_2-CH(-[2]CH_3)-CH(-[6]CH_2-CH_3)-{(CH_2)}_5-CH_3}

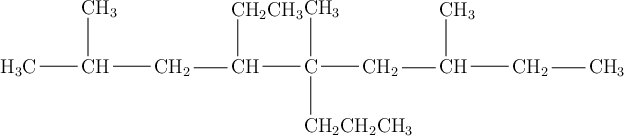

g) \chemfig{H_3C-CH(-[2]CH_3)-CH_2-CH(-[2]CH_2CH_3)-C(-[2]CH_3)(-[6]CH_2CH_2CH_3)-CH_2-CH(-[2]CH_3)-CH_2-CH_3}
